CH-280A&B-AG-Agricultural Mist Fan

MIST FAN

Agricultural Mist Fan

Industrial Mist Fan

Atomizer

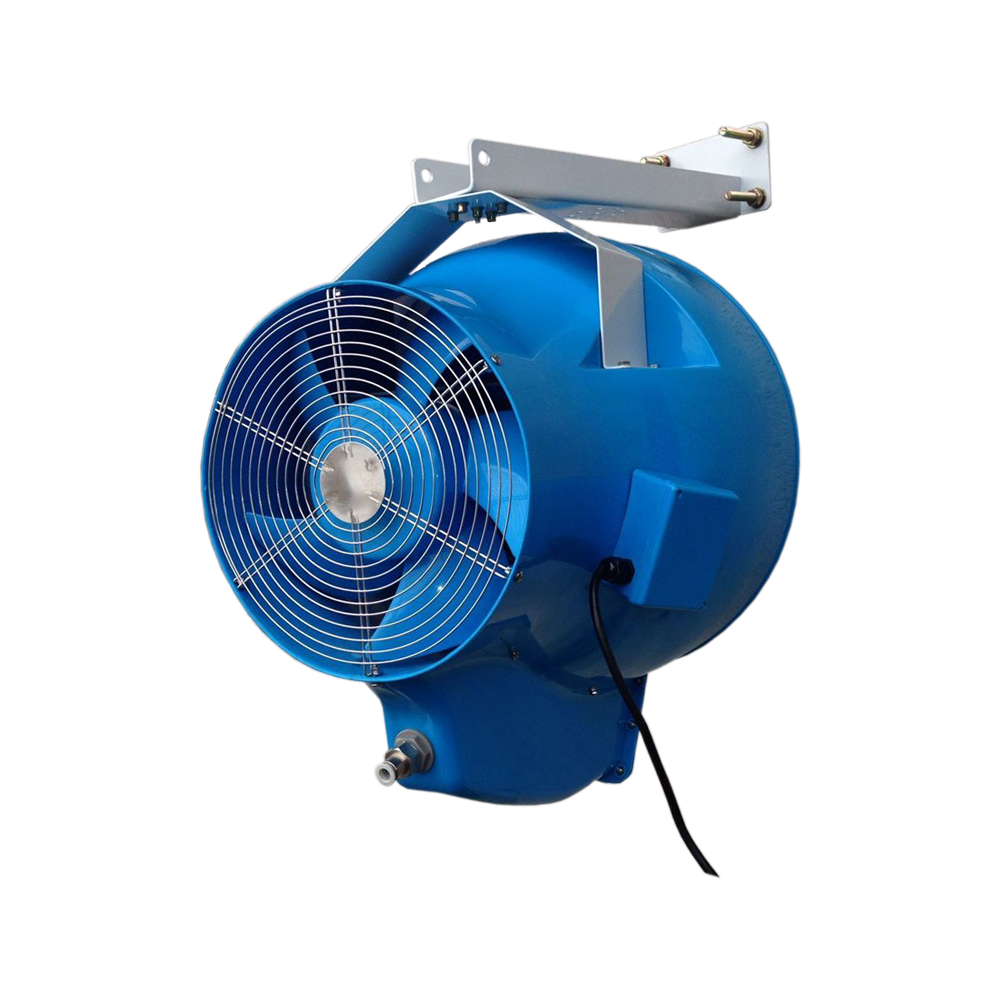

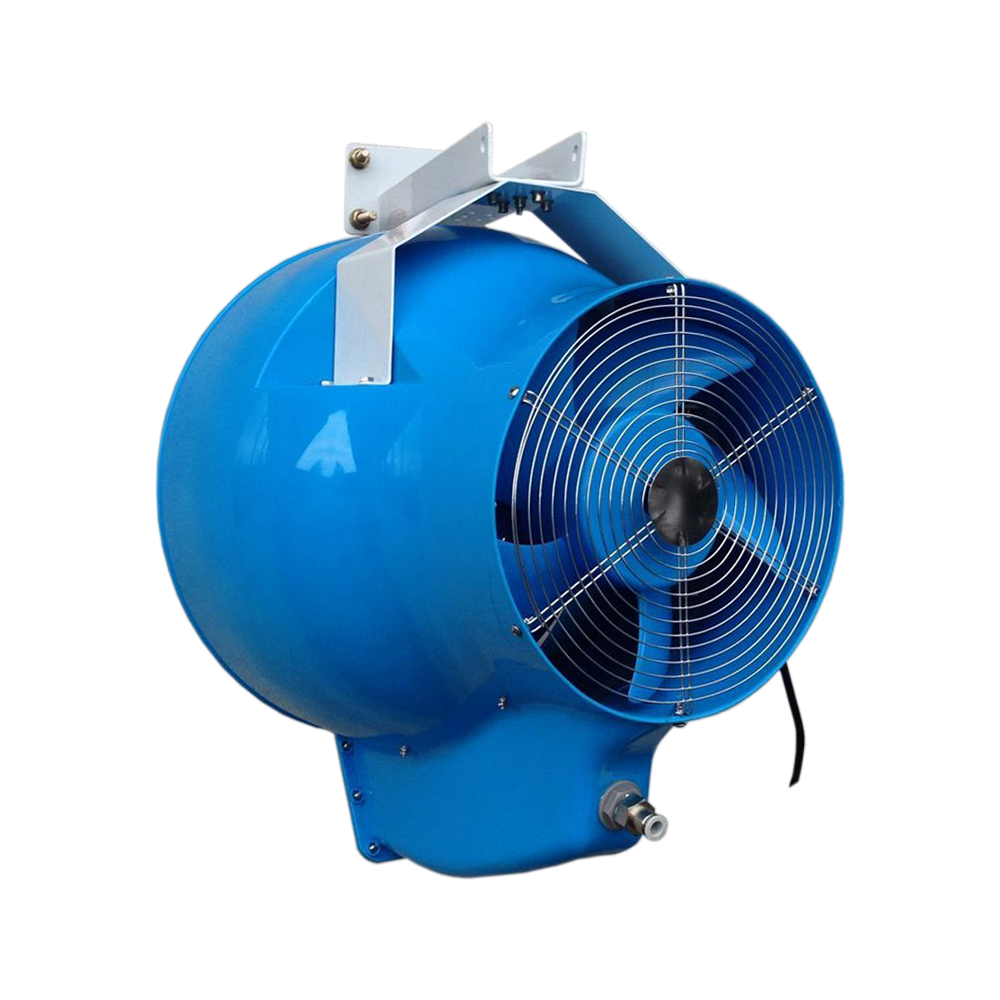

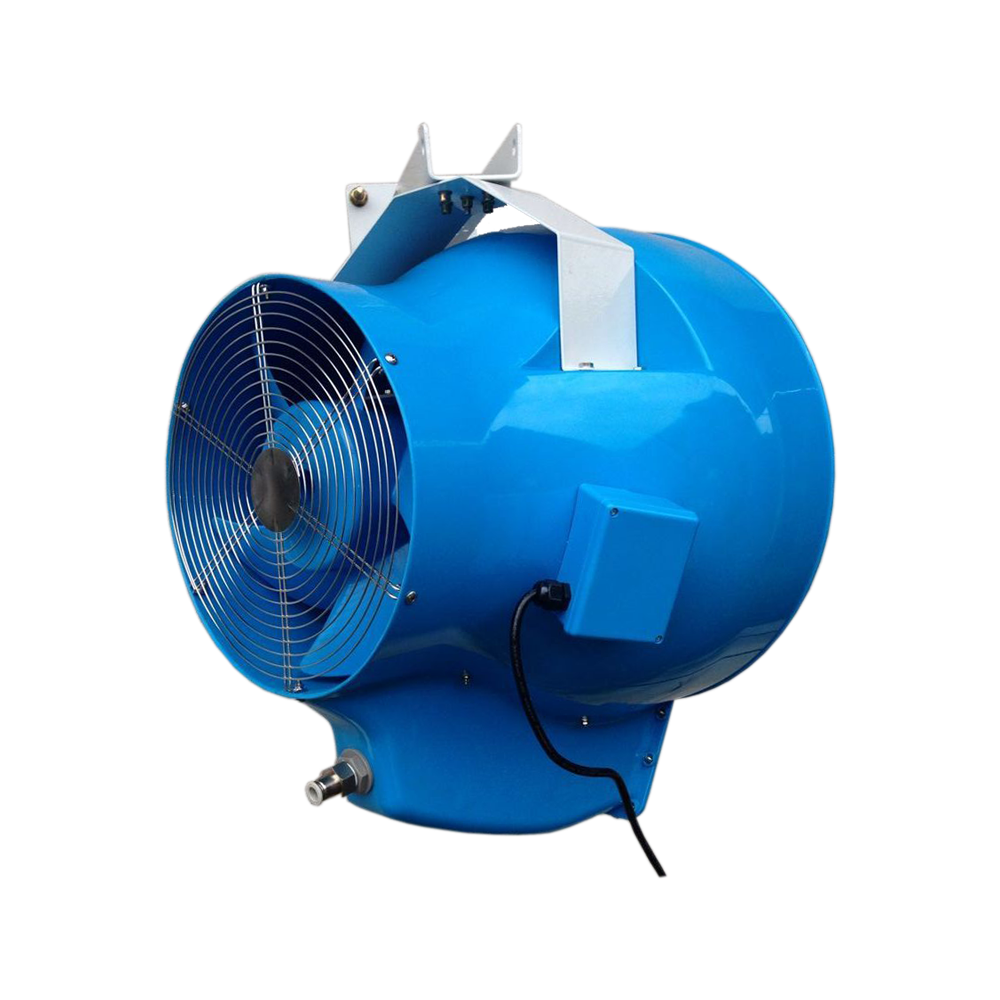

Agricultural Mist Fan

CH-280A&B-AG

· Air flow: 2000CMH
· Input Power: 750W
· Output Power: 500W
· Water consumption: 0~25 L/H
· Effective area: 150 m²
· Low down temperature 4~8 degree C
· With CE certificate.
· 100% COPPER Motor: 220~240V/50hz/60hz, 110~120v/60hz

download

SPECIFICATION

ADVANTAGE

APPLICATION

INSTRUCTIONS

PRODUCT VIDEO

AGRICULTURAL MIST FAN - CH-280A-AG/CH-280B-AG
Item	Electricity	Input Power	Output Power	Area Of Coverage	Water Consumption	Water Tank Capacity	Gross Weight	Packing Dimension
Item	Electricity	W	W	m²	L/H	L	KG	L×W×H (cm)
CH-280A&B-AG	220-240V/50Hz 110-120V/60Hz	760	500	150	0-25	2	23.6	57x49x50.5
CH-380A-AG	220-240V/50Hz 110-120V/60Hz	130	90	100	0-20	2	8.2	48x48x22
CH-380B-AG	220-240V/50Hz 110-120V/60Hz	130	90	100	0-20	2	7.6	49x43x29
CH-4X380-AG (4 Sides)	220-240V/50Hz 110-120V/60Hz	1200	780	300	0-50	4	55	82.5x80.5x71.5

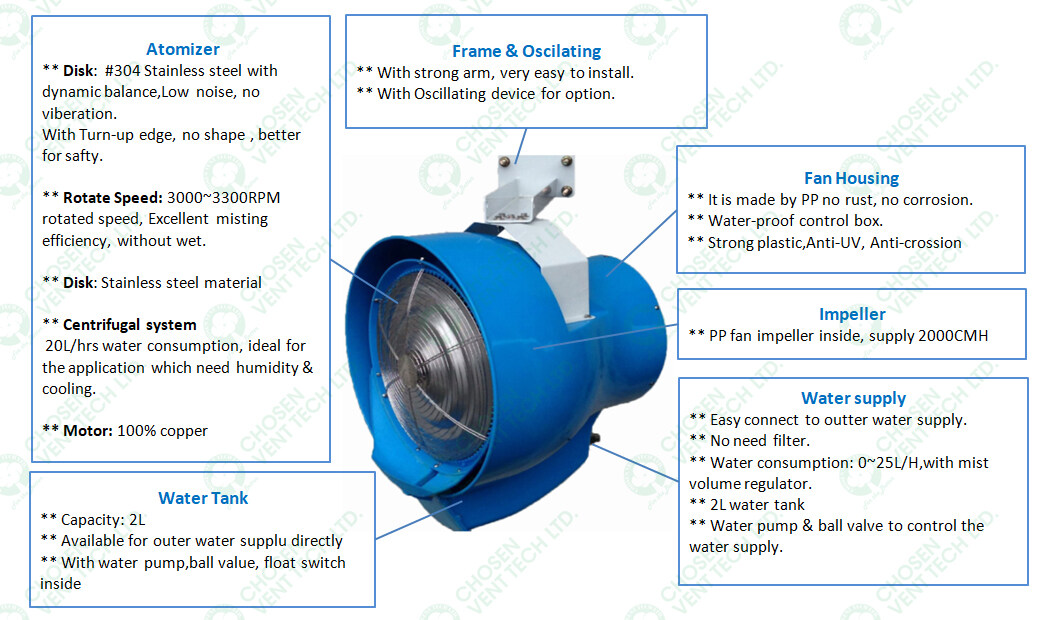

advantage:

· Ideal mist fan for the environment which needs humidity , cooling, disinfection. Extremely atomization efficency.
· Centrifugal misting system, no trouble of nozzle clogging, no screech.
· Stainless steel atomizer and dynamic balance rotated disk, exact calculation for water output, beyond 3000rpm, the misting fan makes mist particle in 10~20μm.
· Motor with 100% copper, IP44, B class.
· PP body with ANTI-UV material, ANTI-Corrosion, Long lasting.
· With water value to control the volume of the mist.
· With CE certificate.
· Easy installation

application:

· Agriculture Greenhouse
· Poultry House
· Flower House
· Cattle Farm
· Mushroom
· Other: Amusement Park

instructions:

product video:
