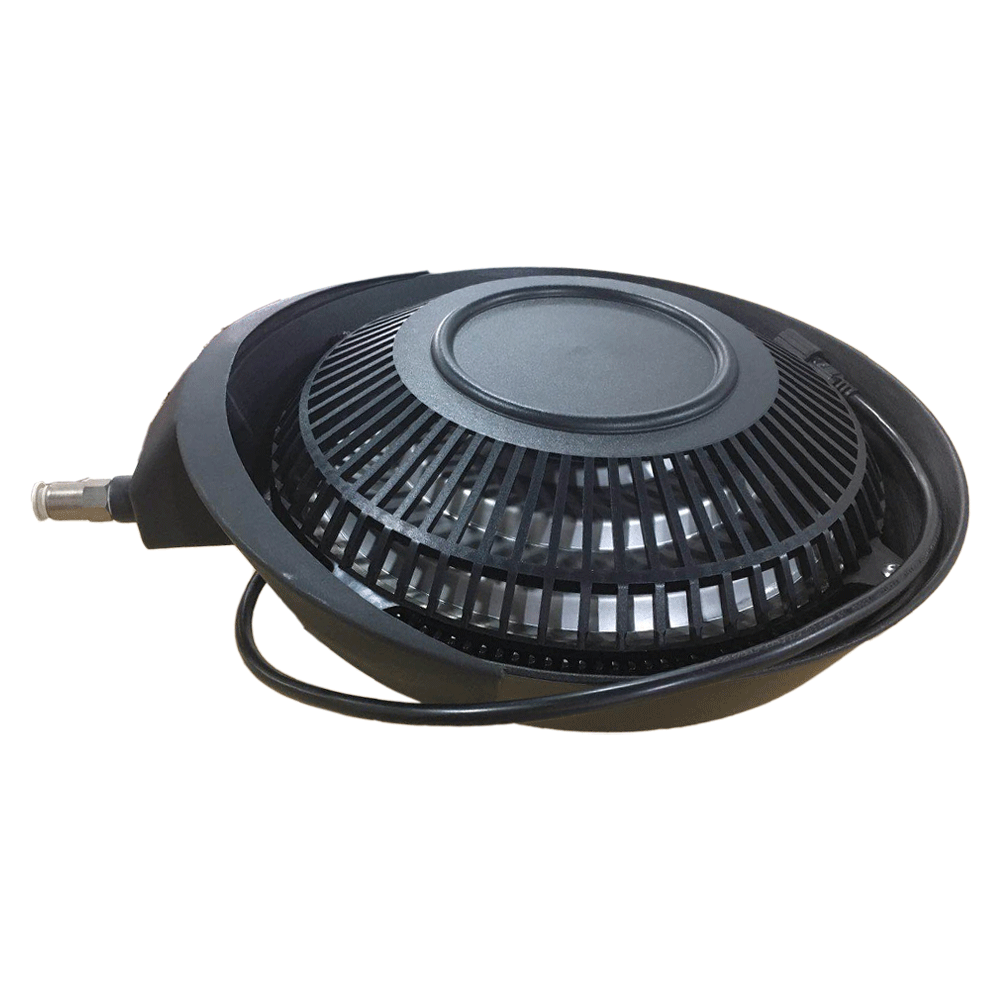

MIST FAN

Atomizer
CH-310AT-H
CH-310AT-H

CH-310AT-H


· Size: 310mm or 390mm dia
· Speed: 3300rpm
· Low down temperature
· Dusting
· Add humidity
· Disinfection
· No water drop
· ABS material with inflaming retarding,Anti-UV
· Stainless steel disk
· 100% COPPER Motor: 220~240V/50hz/60hz, 110~120v/60hz

download
ATOMIZER
Item Diameter Voltage / Frequency Rotate Speed Power
mm V/Hz rpm W
CH-310AT-H 310 220/50 2800-2940 85
CH-390AT-H 390 220/50 2850-2940 130

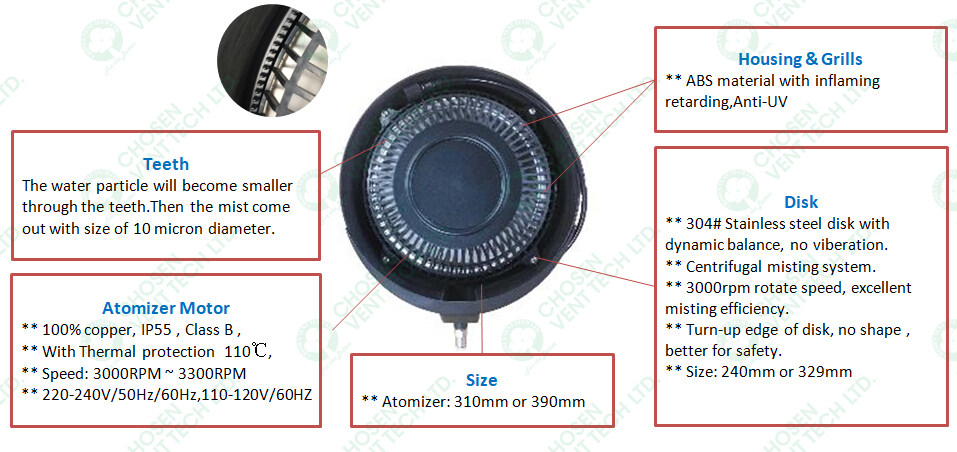

advantage:

· For wide-range environment which needs humidity , cooling, disinfection, dust removing. Extremely atomization efficency.
· Centrifugal misting system, no trouble of nozzle clogging, low noise.
· Dynamic balance rotated disk, exact calculation for water output, beyond 3000rpm, the mist particle will be in 10~20μm.
· Motor with 100% copper, IP54, B class.
· ABS material with inflaming retarding, Anti-UV

application:

· Industrial:  Factory, Workshop, Warehouse.
· Agricultural:  Greenhouse, Poultry House, Flower House, Cow Shed, Pig House, Cattle farm, mushroom.
· Civil: Party, Stadium, playground

instructions:
product video:
