Industrial Mist Fan

CH-560S-H

· Size: 560mm diameter
· Air flow: 8000CMH
· Air supply distance: 15M
· 100% COPPER Motor: 220~240V/50hz/60hz, 110~120v/60hz
· Effective area: 300 m²
· Water consumption: 0~10 L/H
· Low down temperature 4~8 degree C
· Disinfection function, add humidity.
· Swing or with remote control is optional
· With CE CERTICATED.

download

SPECIFICATION

ADVANTAGE

APPLICATION

INSTRUCTIONS

PRODUCT VIDEO

INDUSTRIAL MIST FAN - VERTICAL SERIES - CH-560S-H
Item	Function Selection	Fan Diameter	Power	Voltage/Frequency	Area Of Coverage	Effective Distance	Water Storage	Noise	Product Dimension	Weight
Item	Function Selection	mm	W	V/HZ	m²	m	L	dB	L×W×H(mm)	(kg)
CH-560S-H	Fixed Model	Ø560mm	600W	220-240V/50HZ/60H Z110-120V/60Hz	300㎡	15m	60L	70	Fan: 67X67X55CM Water tank: 51X45X52CM	57kg
CH-560S-H	Oscillation	Ø560mm	600W	220-240V/50HZ/60H Z110-120V/60Hz	300㎡	15m	60L	70	Fan: 67X67X55CM Water tank: 51X45X52CM	60kg

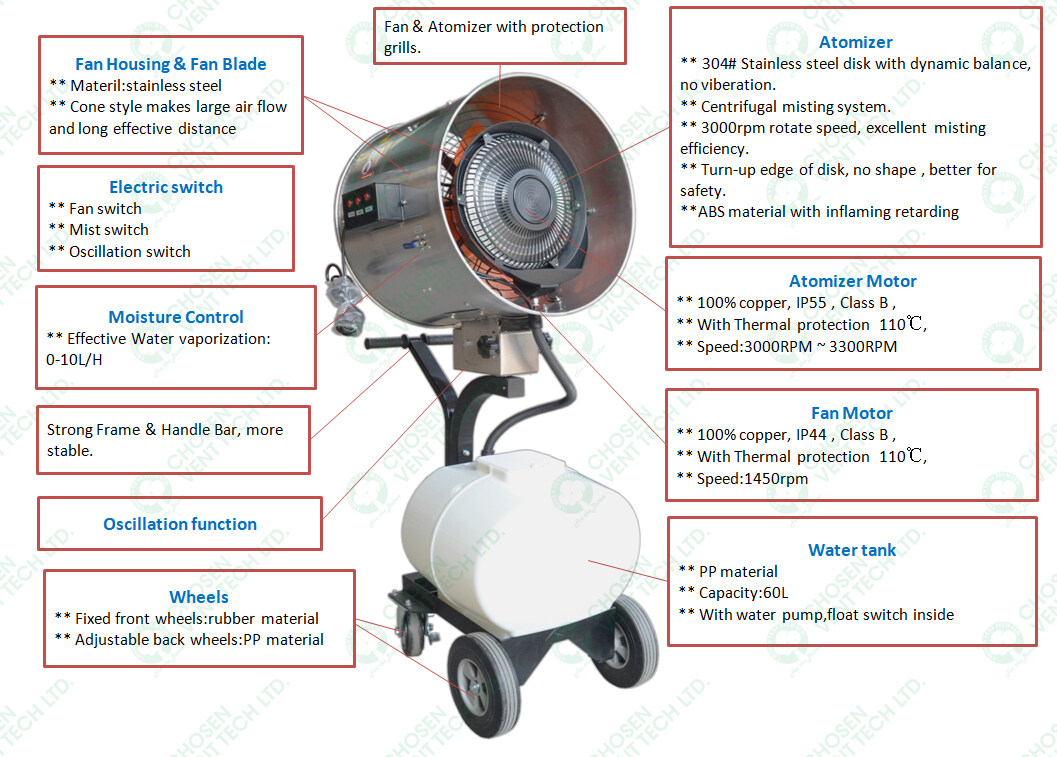

advantage:

· Ideal mist fan for the wide-range environment which needs humidity , cooling, disinfection, dust removing. Extremely atomization efficency.
· Centrifugal misting system, no trouble of nozzle clogging, low noise.
· Stainless steel atomizer and dynamic balance rotated disk, exact calculation for water output, beyond 3000rpm, the misting fan makes mist particle in 10~20μm.
· Motor with 100% copper, IP44, B class.
· Heavy duty axial fan with 8000CMH air flow, the misting can be reach over 15meters distance.
· Stainless steel fan housing & fan blades, ANTI-Corrosion, Long lasting.
· With CE CERTICATED.

application:

· Industrial: Factory, Workshop, Warehouse.
· Agricultrual: Greenhouse, Poultry House, Flower House, Cow Shed, Pig House, Cattle farm, mushroom.
· Civil: Party, Stadium, playground
